Description
1. Design description:

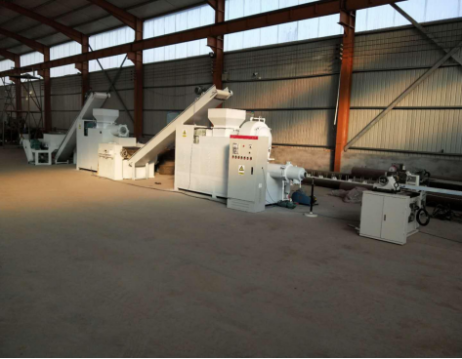

200-500 toilet soap line
This set of production lines is a soap molding production line with soap nuggets as raw materials and an output of 200-500 kg/h. After raw material mixing, grinding, vacuum stripping, and printing, medium and high-grade soaps with a fatty acid content of 55-70% can be produced. The production line adopts a double-layer vacuum stripping machine, which can make the soap structure compact and not easy to crack.
2. Production conditions:
1. Water: It is recommended to use a chiller
2. Electricity: 60 kilowatts/hour, 380 volts, 50 Hz;
3. Workshop requirements: 22 meters in length, 8 meters in width, and 3.5 meters in height (including worker operation area);
4.Labor requirements: 6-8 people/class.
Small soap equipment list
| No. | Equipment
picture |
Parameter |
 700 type mixer |
Equipment Name: Mixer
Function: Fully and uniformly stir and mix the various raw materials for producing toilet soap and transparent soap to refine the granulation. Various auxiliary materials, additives, and flavors are completely mixed into the granulation to meet the formula requirements. power: 5.5 kW/h Dimensions: 1400*830*1050mm |
|
| 2 |
 JZ219
|
Equipment name: delicate
mold machine 2100*860*2220mm |
|
3 |
 S260 |
Equipment name:
Three-rod grinder (S260 type) Roller diameter: 260mm Working surface length: 695mm Motor power: 7.5kw Dimensions: 1700*1200*1300mm Weight: 1734kg |
| 4 |
 C219
|
Equipment Name: Duplex
Vacuum Stripping Machine Production capacity: 200-500 kg/h 11 kW speed regulation Dimensions:—— |
| 5 |
 Toilet Soap printer |
Output: 60-120 pieces/min
Motor power: 2.2 kW Weight: 1000 kg Dimensions: 1500*1000*1200mm Weight: 1244kg |
|
6 |
 5 hp freezer |
Working temperature: -17℃
Cooling capacity: (kcal/h): 6800 Compressor power (kw): 3 Dimensions (mm): 1500*700*1700 Equipment weight (kg): 560 |
| 7 |
 Two-stage rotary vane vacuum pump |
Pumping volume: 8 liters/sec
Motor power: 1.1kw Dimensions: 600*500*350mm Weight: 66kg |
| 8 |
 conveyor |
Convey to (2 meters
4 meters 3 meters) Motor power: 1.1kw Dimensions: 3400×600×600mm Dimensions: 4400×600×600mm, 166kg Dimensions: 3400×600×850mm |
| 9 |
|
|
| 10 |
 Electroni c Dicer |
Cutting speed: The
cutting speed is determined by the stripping speed of the stripping machine. Cut strip size: 60-400mm 860*550*1120mm |
Note:
The price is EXW It could be mixed with soap noodles or exported individually.
PriceValidty:7 days after you received this price 3-Loading port: Tianjin port, China.
4-Shipping time: Negotiation.
5-Payment:50% T/T in advance as deposit,
the balance will be paid before loading.
