First. Design Description:

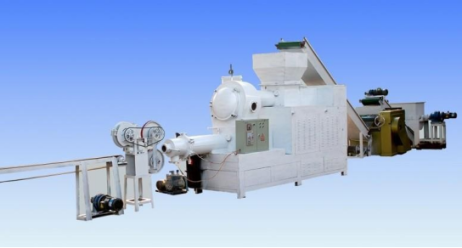

This set of the production line is a soap molding production line with soap noodles as raw
material and an output of 100-200 kg/h. After raw material mixing, grinding, vacuum stripping, electronic roller printing and cutting, medium and high-grade soap with a fatty acid content of
40-65% can be produced. The production line uses a double-layer vacuum stripping machine, which can make the soap structure compact and not easy to crack. Second. Production conditions:
1. Electricity: 35 kW/h, 380 volts, 50 Hz;
2. Workshop requirements: 22 meters in length, 8 meters in width, and 3.5 meters in height
(including worker operation area);
3. Labor requirements: 6-8 people/class. Third. Flow
Smallsoapequipmentlist
No.
Equipment
Parameter
1
600 type mixer
Equipment name: Mixer
(600 types) Function:
Fully and uniformly stir
and mix various raw
materials for producing
toilet soap and
transparent soap to
refine the granulation,
and completely mix
various auxiliary materials,
additives and flavors
into the granulation
to meet the
requirements of the
formula.
Output: 75kg/each
Motor power: 4 kW/h
Dimensions: 1550*800*1130mm
Weight: 320kg
2
S150 Three Roll
Grinding Machine
Equipment name:
Three-rod grinder (S150 type)
Roller diameter: 150mm
Length of working surface:
300mm
Motor power: 2.2kw
Dimensions: 820*800*920mm
Weight: 500kg
3
C180 double vacuum
stripping machine
Equipment Name: Duplex
Vacuum Stripping Machine
Production capacity:
100-200 kg/hour
Motor power: 5.5 kilowatts,
7.5 kilowatts for speed regulation
Dimensions: 2860*880*2220mm
Weight: 1320 kg
4
Electronic Dicer
Cutting speed: The
cutting speed is
determined by the
delivery speed of
the stripping machine.
Output: 100-1000kg/hour
Cut strip size:
60-400mm
Dimensions:
860*550*1120mm
Weight: 128kg
5
Two-stage rotary vane vacuum pump
Pumping volume: 8 liters/sec
Motor power: 1.1kw
Dimensions: 600*500*350mm
Weight: 66kg
6
conveyor
Convey to (2 meters
4 meters 3 meters)
Motor power: 1.1kw Dimensions:
3400×600×600mm
Dimensions: 4400×600×600mm,
166kg
Dimensions: 3400×600×850mm
7
Electric cabinet
Equipment Name:
Power Distribution Cabinet
Used to control each
the machine of the
production line.
Note:
The price is EXW It could be mixed with soap noodles or exported individually.
PriceValidty:7 days after you received this price 3-Loading port: Tianjin port, China.
4-Shipping time: Negotiation. 5-Payment:50% T/T in advance as deposit,
the balance will be paid before loading. 6-Contact details:
