bath soap production line

100-200 bath soap production line

Share This Post:

Description

Description

First. Design Description:

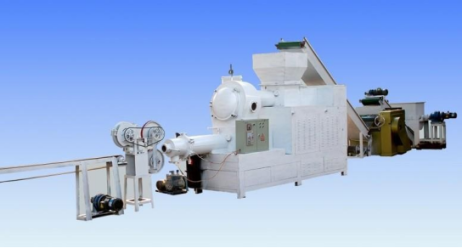

This set of the production line is a soap molding production line with soap noodles as raw
material and an output of 100-200 kg/h. After raw material mixing, grinding, vacuum stripping, electronic roller printing and cutting, medium and high-grade soap with a fatty acid content of
40-65% can be produced. The production line uses a double-layer vacuum stripping machine, which can make the soap structure compact and not easy to crack. Second. Production conditions:
1. Electricity: 35 kW/h, 380 volts, 50 Hz;
2. Workshop requirements: 22 meters in length, 8 meters in width, and 3.5 meters in height
(including worker operation area);
3. Labor requirements: 6-8 people/class. Third. Flow

Small soap equipment list

No.

Equipment


Parameter

600 type mixer

Equipment name: Mixer

(600 types) Function:

Fully and uniformly stir

and mix various raw

materials for producing

toilet soap and

transparent soap to

refine the granulation,

and completely mix

various auxiliary materials,

additives and flavors

into the granulation

to meet the

requirements of the

formula.

Output: 75kg/each

Motor power: 4 kW/h

Dimensions: 1550*800*1130mm

Weight: 320kg

S150 Three Roll

Grinding Machine

Equipment name:

Three-rod grinder (S150 type)

Roller diameter: 150mm

Length of working surface:

300mm

Motor power: 2.2kw

Dimensions: 820*800*920mm

Weight: 500kg

C180 double vacuum

stripping machine

Equipment Name: Duplex

Vacuum Stripping Machine

Production capacity:

100-200 kg/hour

Motor power: 5.5 kilowatts,

7.5 kilowatts for speed regulation

Dimensions: 2860*880*2220mm

Weight: 1320 kg

Toilet Soap printer

Output: 60-120 pieces/min

Motor power: 2.2 kW

Weight: 1000 kg

Dimensions: 1500*1000*1200mm

Weight: 1244kg

Two-stage rotary vane vacuum pump

Pumping volume: 8 liters/sec

Motor power: 1.1kw

Dimensions: 600*500*350mm

Weight: 66kg

conveyor

Convey to (2 meters

4 meters 3 meters)

Motor power: 1.1kw Dimensions:

3400×600×600mm

Dimensions: 4400×600×600mm,

166kg

Dimensions: 3400×600×850mm

Electric cabinet

Equipment Name:

Power Distribution Cabinet

Used to control each

machine of the production line.

5 hp freezer

Working temperature: -17℃

Cooling capacity: (kcal/h): 6800 Compressor power (kw): 3 Dimensions (mm): 1500*700*1700

Equipment weight (kg): 560

Bath soap mould

Note:

The price is EXW It could be mixed with soap noodles or exported individually.
PriceValidty:7 days after you received this price 3-Loading port: Tianjin port, China.

4-Shipping time: Negotiation. 5-Payment:50% T/T in advance as deposit,

the balance will be paid before loading. 6-Contact details:

Contact person: Daria Liu Tel/Wechat/Whatsapp: 0086-15832189526

Mail: daria@guangshengtechnology.com
